The Story

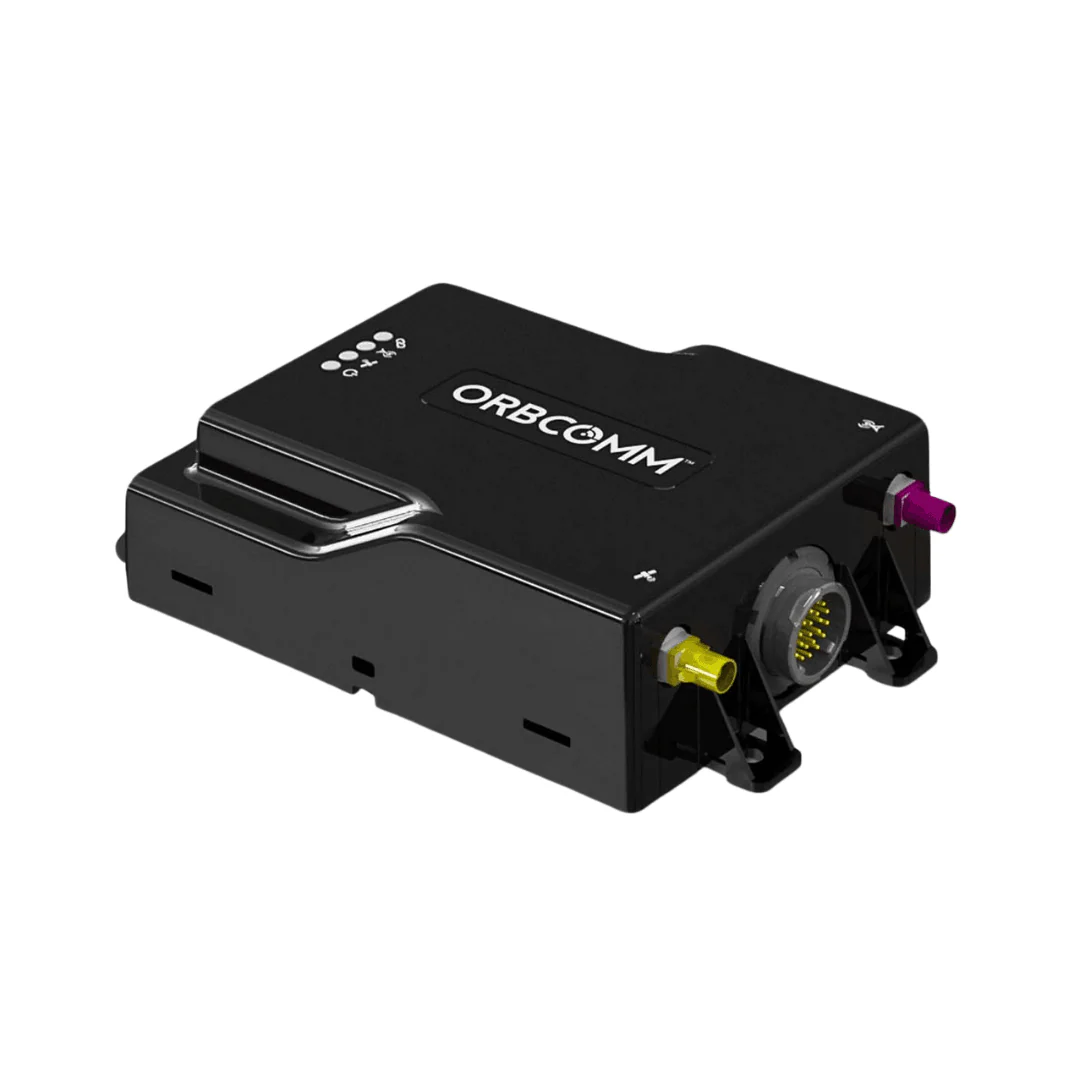

The ST 9100 is a flexible, robust, and programmable dual-mode satellite-cellular terminal. It is ideal for remotely monitoring and controlling fixed and portable assets in industries as diverse as transportation, oil, and gas, utilities, maritime and more. The versatile, environmentally sealed ST 9100 is ideal for rugged environments in the world's most remote areas.
Easy integration
The ST 9100 offers a flexible programming environment that supports the development of custom solutions, as well as support for ORBCOMM® configurable terminal apps. In fact, you can combine terminal apps with your own code to create a custom solution to speed time to market.
Feature-rich
Standard features include multiple I/Os, including analog/digital, 2 RS232, 1 RS-485/J1708, 1-Wire, and 2 CANbus. 3-Axis accelerometer, Bluetooth connectivity, and multiple SIMs are also supported.
Airtime savings
Use cellular or automatically switch between cellular and satellite connectivity for significant cost savings. In addition, the ST 9100 can be programmed to process data and send only important updates over the air, reducing connectivity costs.
Continuous operation
The ST 9100 features a backup battery that enables reporting for more than 48 hours with 1-minute cellular reporting or 60-minute satellite reporting when power is interrupted.
Development kit
The ST 9100 development kit includes all the hardware, software development tools, documentation, accessories, and support that you need to write and test your IoT solution for a quicker time to market.
Specification
| Dimensions | 148 x 113 x 47 mm |
| Operating Temperature |
Transceiver and antenna: -40°C to +85°C |
| Dust and Water Ingress | IP67 |
| Vibration | SAE J1455 (Sec 4.9.4.2 fig 6-8); MIL-STD-810G |
| Shock | MIL-STD-810G (Sec 516.6) |
| Input Voltage | 9 to 32V; load dump protection: +150V; SAE J1455 |
| Battery Type | Lithium-ion 2,000 mAh |
| Battery Backup | >48 hours operation with 1-minute cellular reporting or 60-minute satellite reporting |
