The Story

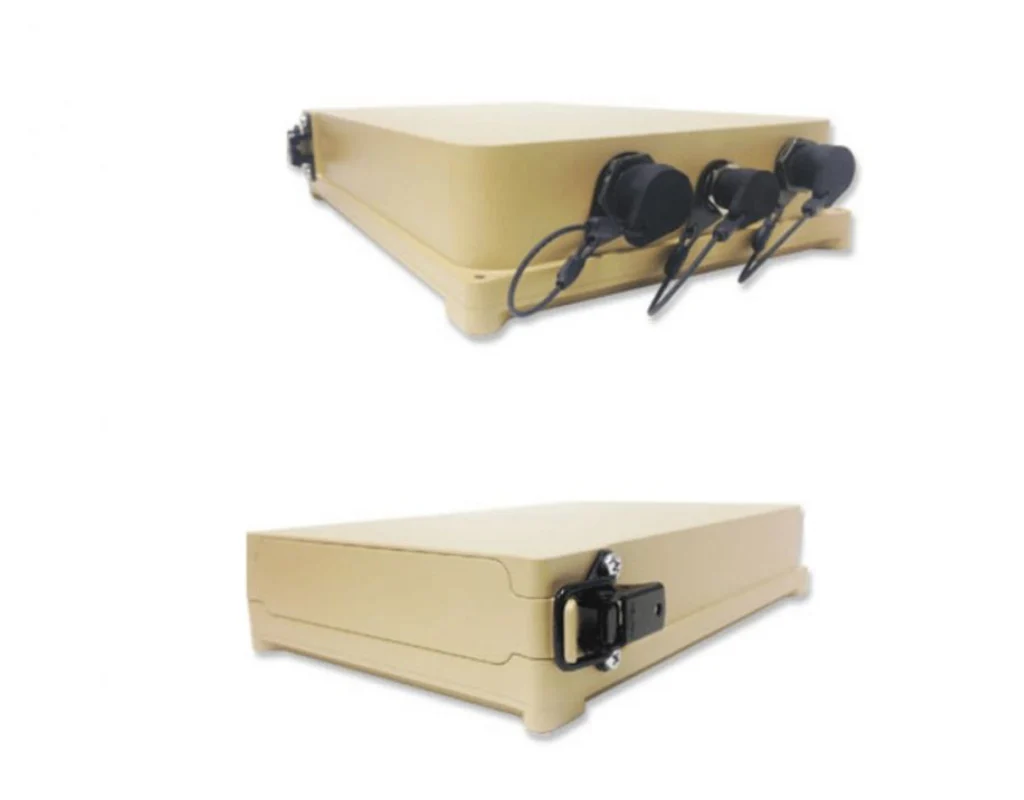

The LPB modem delivers exceptional low power consumption (< 1 W idle) for off-the-grid installations. Both modem and antenna are IP-67 rated for outdoor use and can also be installed below ground surface for inconspicuous operation. A thin layer of dry, non-metallic material over the antenna is permissible during TX/RX operation.
Key Features:
- Auto-on/autocontext activation automatically restores power and Packet Data Protocol (PDP) connection to the unit following loss of power and/or IP connection
- Remote control via SMS—allows command and control of the terminal using SMS, including configuration, debugging, and access to its Web interface
- Ultra-low power consumption
- Basic installation; no PC required
- Built-in GPS receiver
- Over the air firmware upgrades
- Minimal pointing of antenna is required; lay antenna flat and point arrow toward the satellite (antenna operates between 30°–60° elevation angle but can be tilted from horizontal, if necessary, at greater elevations.)
Interfaces:
- IP Ethernet connection via IP-67 rated 6-pin Amphenol connector
- Power-on switch signal via IP-67 rated 3-pin power input connector
- IP-67 TNC RF connection on modem to lay flat antenna
- USB for local configuration and setup
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The LPB modem delivers exceptional low power consumption (< 1 W idle) for off-the-grid installations. Both modem and antenna are IP-67 rated for outdoor use and can also be installed below ground surface for inconspicuous operation. A thin layer of dry, non-metallic material over the antenna is permissible during TX/RX operation.
Key Features:
- Auto-on/autocontext activation automatically restores power and Packet Data Protocol (PDP) connection to the unit following loss of power and/or IP connection
- Remote control via SMS—allows command and control of the terminal using SMS, including configuration, debugging, and access to its Web interface
- Ultra-low power consumption
- Basic installation; no PC required
- Built-in GPS receiver
- Over the air firmware upgrades
- Minimal pointing of antenna is required; lay antenna flat and point arrow toward the satellite (antenna operates between 30°–60° elevation angle but can be tilted from horizontal, if necessary, at greater elevations.)
Interfaces:
- IP Ethernet connection via IP-67 rated 6-pin Amphenol connector
- Power-on switch signal via IP-67 rated 3-pin power input connector
- IP-67 TNC RF connection on modem to lay flat antenna
- USB for local configuration and setup
